Modeling reinforced concrete in ABAQUS

Hi everyone,

I am a master student working on my master thesis using ABAQUS. I am modeling an experiment, but the problem is that my results from ABAQUS do not agree with the experimental results. Can you help me to check if I have done any mistakes?

The model is a slender square concrete column 150x150mm and 1300mm long.
Longitudinal reinforcement:  550MPa, diamater 8mm
Lateral reinforcement: yield strength 630MPa, diamater 6.5mm, spacing 10.5mm
Mean compressive strength of concrete: 34.32 MPa
Eccentricities of applied load: ex=50mm ey=50mm
Load: 1kN/s
Pinned conditions at both sides

I use concrete plasticity damage model. For defining the load I use deformation control with a prescribed deformation 0.010m.

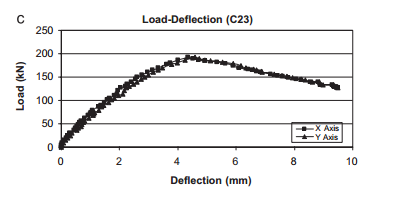

I have attached my input file and the expected load-deflection curve.

Thank you for your help!
// Nessa

AttachmentSize
Image icon Load Deflection C23.png12.64 KB
Plain text icon C23-3.txt251.64 KB
Free Tags:

Hi there!

Can you please specify in detail what kind of problem you are facing?



Cheers!

Naseef U.

Hi Naseef!



I had problem with the units and I fixed it. I have also changed the Amplitude to Smooth Step and did other changes to the model as well. But still I don't get correct result. In the experiment the maximum load reached is 900 kN. However I only reach 90 kN before failure.



What is the reason I reach failure so early?



Thanks!

Nessa
