what is the reason for Large element deformation?

Dincoz's picture

Hi my Friends,

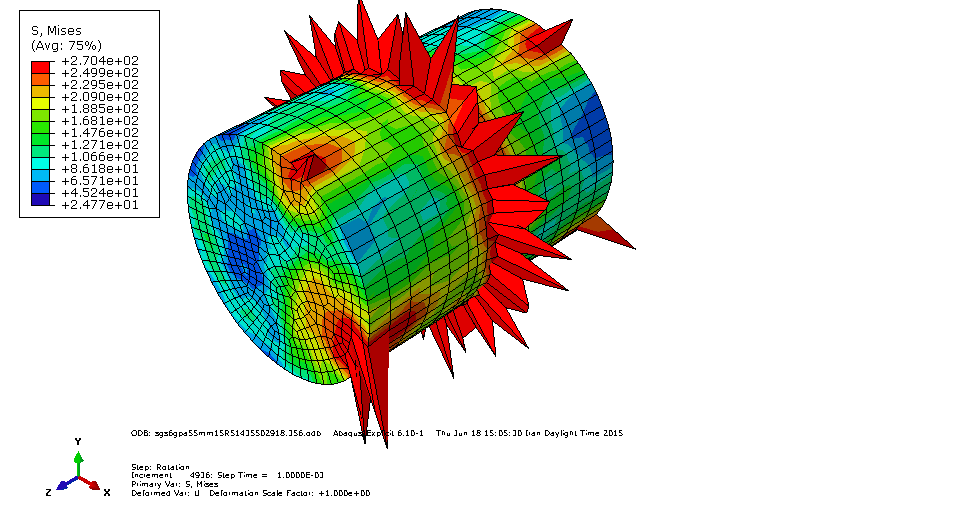

I am doing abaqus run for a copper specimen under hydrostatic pressure. The magnetude of pressure is in order of several Giga Pascals. In my material definition, I have defined stress-strain flow up to strain of 0.4. But as you can see in attached photo, some elements show very large deformation (considerably larger than 0.4). Knowing that I have not defined stress strain behaviour for srain greater than 0.4, how this can be occure? Unfortunately, niether adaptive meshing nor element deletation were not eliminate this issue!!



Best Thanks

AttachmentSize
Image icon Abaqus deformation.png32.24 KB
