Merge mesh in Abaqus

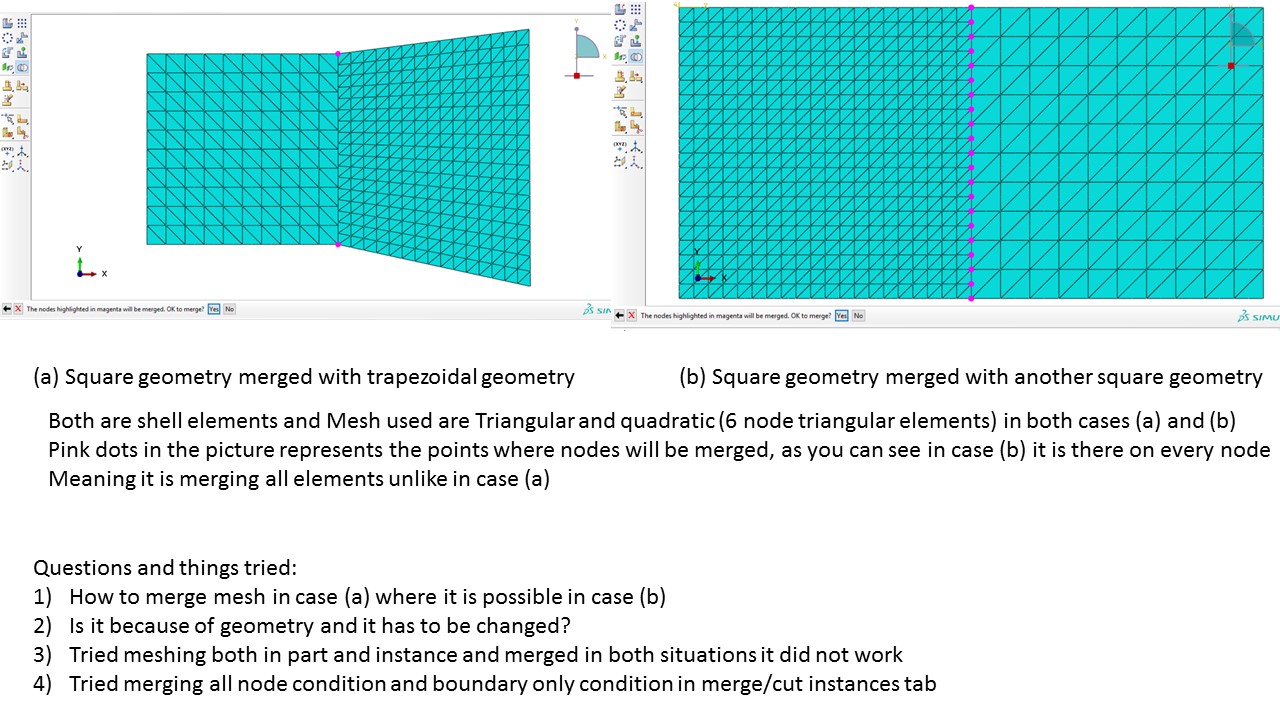

Hi I tried to mesh these two plates with two cases having different geometries. I am trying to achieve something similar in complex geometry in abaqus. But I think the problem is with shapes or if it is something else, please help me with this. I tried in solid elements too it did not work either. I have attached image where you can see two cases

Please see the attached file for detailed view

AttachmentSize
Image icon abaqus_edit.jpg264.65 KB
