Problem with merging mesh in Abaqus
Fri, 2016-01-15 03:53 - manojbrutal.v@g...

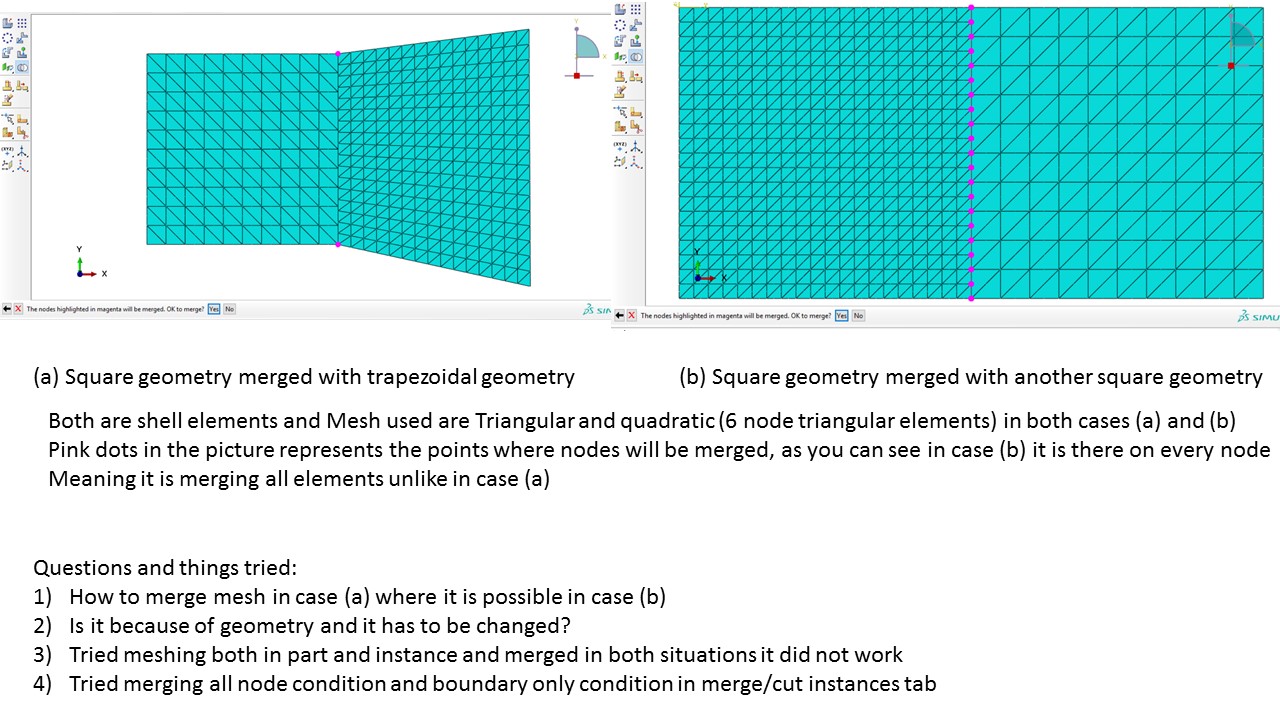

Hi I tried to mesh these two plates with two cases having different geometries. I am trying to achieve something similar in complex geometry in abaqus. But I think the problem is with shapes or if it is something else, please help me with this. I tried in solid elements too it did not work either. I have attached image where you can see two cases
Attachment | Size |
---|---|
abaqus_edit.jpg | 264.65 KB |
Forums:
You need to seed the
You need to seed the neighbour edges. http://prntscr.com/9sulrd
