Strain values transformed in a rotated x'y'-Cartesian coordinate system with ABAQUS

Mohammed Bouchelarm's picture

Dear All,

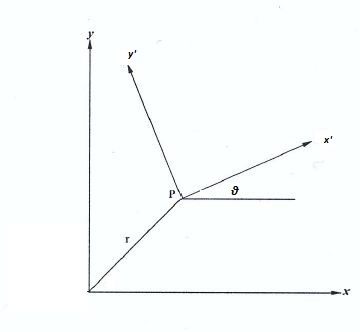

I'm trying to get strains in some specific points (along a path) from the xy-Cartesian coordinate system to a local x'y'-Cartesian coordinate system rotated through an angle (theta) which means transform the strains (Ex,Ey) to (Ex',Ey') as described in the attached figure, something I usually do manually with Mohr's circle and I wonder if I can do it directly with Abaqus ?

Thank you in advance !

Regards.

Mohammed.



AttachmentSize
Image icon transformation.JPG15.89 KB
