modeling a multiple type constraint in one coincidence point

Hello researchers

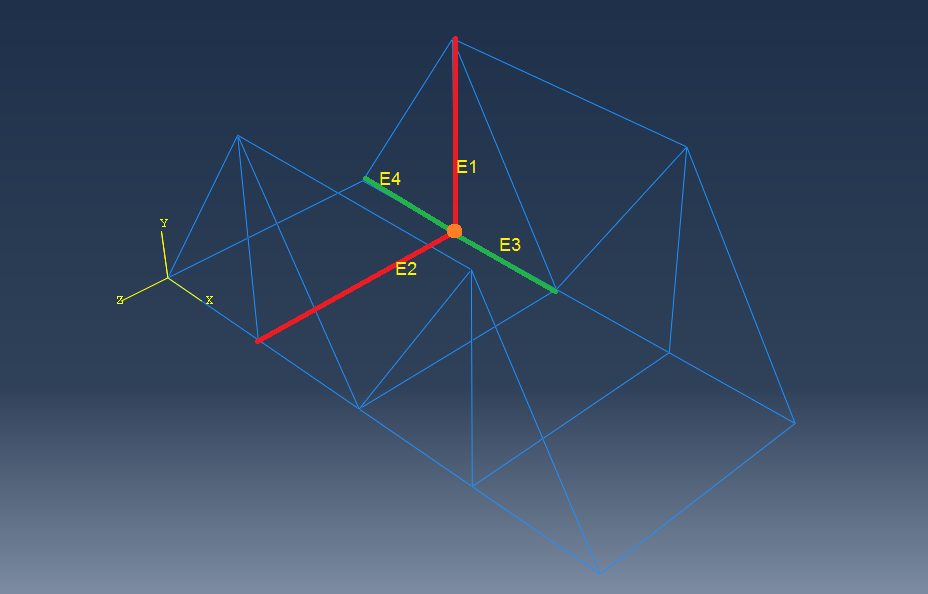

I have a question about modeling a multiple type constraint in one coincidence point between different wire elements. This has illustrated in the following picture:



https://www.4shared.com/photo/X9pr5knIei/Capture.html



I want to define constraint in the orange point as: element E1 and E2 are tied and Element E3 and E4 are pinned in coincidence orange point.





How I can do that?

AttachmentSize
Capture.PNG43.74 KB
