ABAQUS explicit: problem with temperature field output for Extrusion forming
Hi Everyone

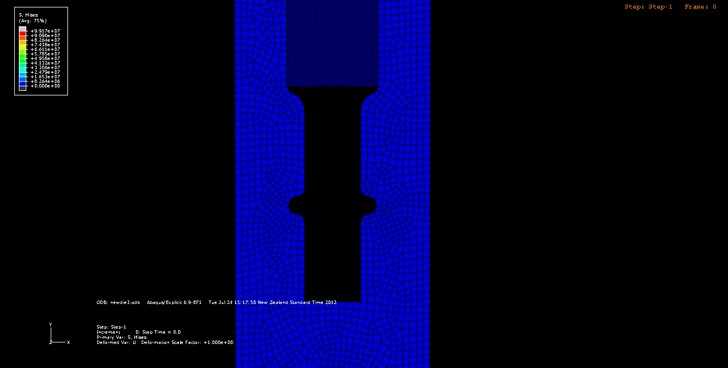

I am trying to simulation extrusion using dynamic explicit temp. I have defined the temperature of the billet and the die in pre-defined field manager at the initial step and let abaqus calculate in step 1. My problem is that i cannot view the temperature field plot after running the simulation. I have also defined conductance and specific heat of all the materials involved. I am atatching the file here...looking forward to your valuable inputs. please send me your email address to nvelluva@gmail.com I could send you the cae file for a quick look.
Regards
Nav
Phd student
Attachment | Size |
---|---|
nav2.gif | 421.98 KB |
