Strain calculation in ABAQUS

Hello,

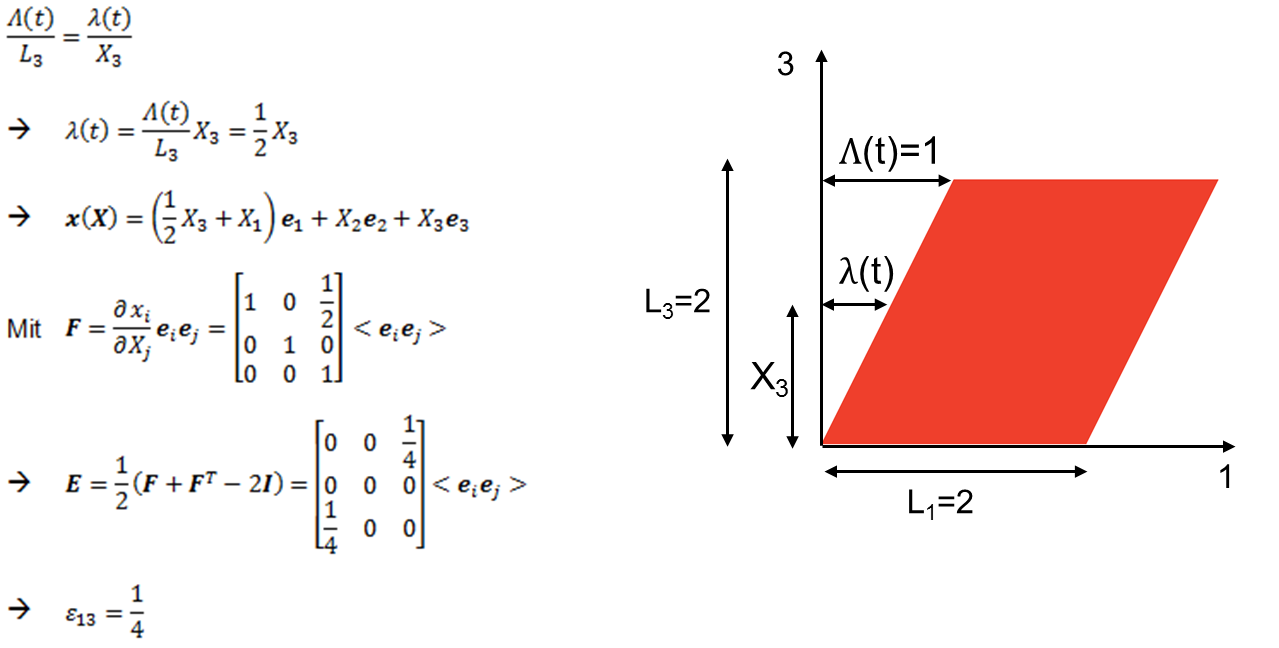

I have some troubles in calculating the strain in ABAQUS. I have the following Model with one element (see picture) and a linear elastic isotropic Material (Steel), which is sheared in the x-direction. The analytical result of the strain tensor gives me in xz-direction 0.25 (see picture). The result in ABAQUS is 0.5. I ran the same simulation in CalculiX CrunchiX and got the expected strain of 0.25 in the xz-direction

Can anyone tell me how ABAQUS calculates the strain for a linear static analysis? Why is the ABAQUS result exactly 50% higher?

Thanks and regards

Christof

AttachmentSize
Image icon Picture.png100.8 KB

hi everyone!!

i m a new user in both abaqus and fortran. can anyone tell me if i can use USDFLD subroutine to vary frictional angle with respect to plastic strain according to Vermeer 1984

what element types did you use?
