Simulation of residual stress relaxation of 2024-T351 aluminum alloy
Mon, 2012-04-09 22:59 - GOKILA

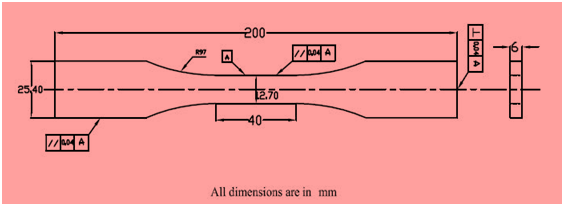

I am doing one project regarding simulation of modeling residual stress relaxation for AA2024-T351. I am having trouble in introducing cyclic loading for the material. what are the steps needed to do this simulation? i have attached the workpiece dimensions.
| Attachment | Size |
|---|---|
 2024-t351.png | 23.02 KB |
Forums:
Free Tags:
Marc maybe can do
Hi GOKLIA,
Recently,I used Marc to simulate residual displacement, corresponding to
residual stress.You need input a plastic-strain curve, and loads 0-F-0 cyclic
with 10 steps,F must be enough to make the model generate palstic deformation.I
hope it canbe help for you!
