Geometry&FEM connection in Mechanical APDL (ANSYS)
Tue, 2010-05-04 05:10 - mehmetsari
Hello everbody,
I'm mechanical engineer and working as FEA Engineer in GATES. I have
been using ANSYS for 5 years and I want to ask a question about new
version of ANSYS.
I use ANSYS Mechanical 12.1. I connect "geometry" and "setup" to
Mechanical APDL box in "project schematic". Then when I open Mec. APDL, I
can see the cad model (areas, lines, volumes) and FEM (nodes, elements)
but they aren't connected to each other. is there any way to connect
solid model to finite element model?
Best Regards.
Mehmet.

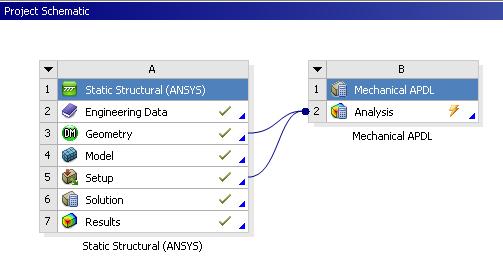

| Attachment | Size |
|---|---|
 Project_Schematic.JPG | 21.37 KB |
Forums:
Free Tags:
pls give some tips about ansys.
sir
i am the beginer of ansys .it is too dificult for me.pls give some tips or material or idea about it.
Connection Simulation
I am having a complex geometry of cylindrical type attached with a I shaped frame with the help of screws. How to simulate screws, which elements should be used and what about the real constants.
If anyone have an idea please reply..............
