Connecting a separated shell in a section

AttachmentSize

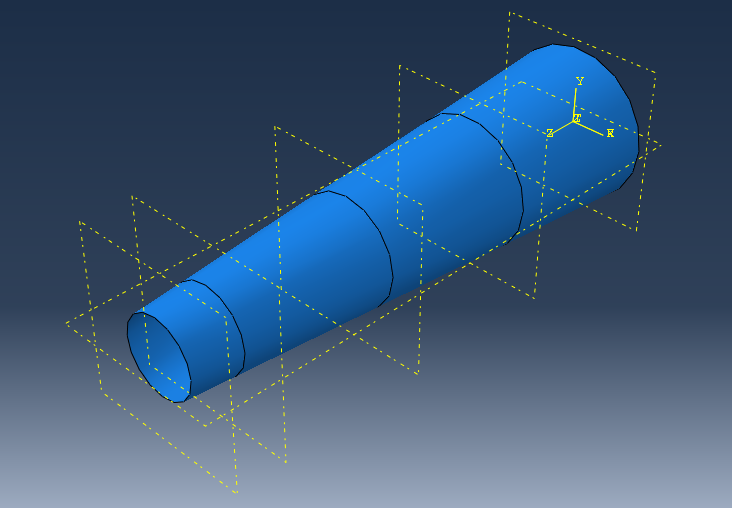

Image icon Conical shell.png80.25 KB

Dear all users

I am working with a conical shell which is partitioned in its higth for assigning different sections. How would it be possible for me to connect these separations to have a structure. I mean i want to connect them just from a section which is belong to tow different parts and i upload its image.

regards.



If they're all in the same parts and are just partitioned, then the mesh will automatically merge the nodes between sections. So they'll connect automatically, all you need to do is assign different sections to each region.

 At first i made a cone after that i partitioned it into some parts to assign different sections, so after this do i need to connect them or not?
