Simple VUMAT/UMAT
Sat, 2012-05-05 09:59 - HussamNasreddin
Hi all,
I was wondering if anyone could provide some guidance on
writing the following VUMAT /UMAT or have anything similar that I can modify;
I would like to define a material for ABAQUS that has the
following properties; the material is elastic and isotropic and does not have
any inelasticity performance;
- Elastic properties to be
defined are; Modulus of elasticity (E), Poisson’s ratio (v) and an
ultimate TENSION strain value. - The material is isotropic
and elastic. Under any state of applied loading, any finite element that
reaches the specified ultimate tensile strain value must be considered
failed. - At this stage, ABAQUS is
expected to continue the analysis without the element that has failed but
with the consideration that there is a geometrical change in the structure
modelled (meaning the element does not strain further or take any stress.
It is not accepted to set the modulus of elasticity to zero only). The
analysis continues in search of another element that would reach the
tension strain value and remove it. - This process continues
until the modelled structure fails or cannot take any more loading.

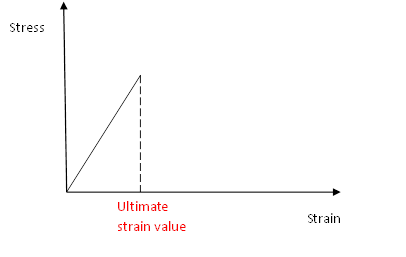

I have attached a stress-strain graph of the material in TENSION.
Any help would be very much appreciated.
Many thanks
Hussam
Attachment | Size |
---|---|
![]() | 6.43 KB |
Forums:
![Subscribe to Comments for "Simple VUMAT/UMAT"](https://imechanica.org/misc/feed.png)
Simple VUMAT/UMAT with failure
Hello
get inspired by
http://imechanica.org/node/12361
In Abaqus Standard:
Note MODEL CHANGE at the end of that thread. I don't know how to use MODEL CHANGE in Abaqus Standard for your purpose. If you have to combine it with a UMAT: for re-writing elasticity in Abaqus Standard using UMAT refer to
http://imechanica.org/files/Writing User Subroutines with ABAQUS.pdf
In Abaqus Explicit:
In VUMAT make the state variable for failure detection equal to the ultimate tension strain value.
Get back to me if you don't find an example for elasticity in Abaqus Explicit using VUMAT.
------------------------------------------
