BIOMECHANICAL STUDY OF GOLF BALL IMPACT ON CHILD’S HEAD USING THE FINITE ELEMENT METHOD
Head traumatic injury due to the impact of a flying golf ball is one of the severest injuries sustained on a golf course. This paper presents numerical simulation results based on the finite element (FE) method to investigate head injuries in children due to impacts by flying golf balls. The energy flow and its flow rate from the golf ball to the child's head and the structural intensity (spatial distribution pattern of energy or the energy flow rate per unit cross sectional area) were calculated for various combinations of impact speed, falling angle of the golf ball just before impact, and impact location. The head injuries were also assessed using the accepted traumatic head injury criteria of skull stress and intracranial pressure. Analyses using the energy flow magnitude and distribution, and the dynamic response quantities provided us with insights of the traumatic head injury mechanism and the possible injury patterns resulting from impact of a golf ball. We found that a child was more prone to head injury when the golf ball impacts the frontal and side-temporal areas. Impact on the back of the head was least likely to induce traumatic head injury. An impact on the frontal part of the head was more likely to induce brain injury compared to a side impact. And a frontal impact might lead to a depressed skull injury while a side impact might induce a linear skull fracture because of the more biased directional energy flow pattern. All the quantities regarding energy flow quantities increase with the squared increment of the golf flying velocity, while the stress in skull and pressure in brain are almost linearly increasing with the velocity. The simulated results were found to positively predict the children head injuries resulting from the flying golf ball impact in published clinical reports.
Attachment | Size |
---|---|

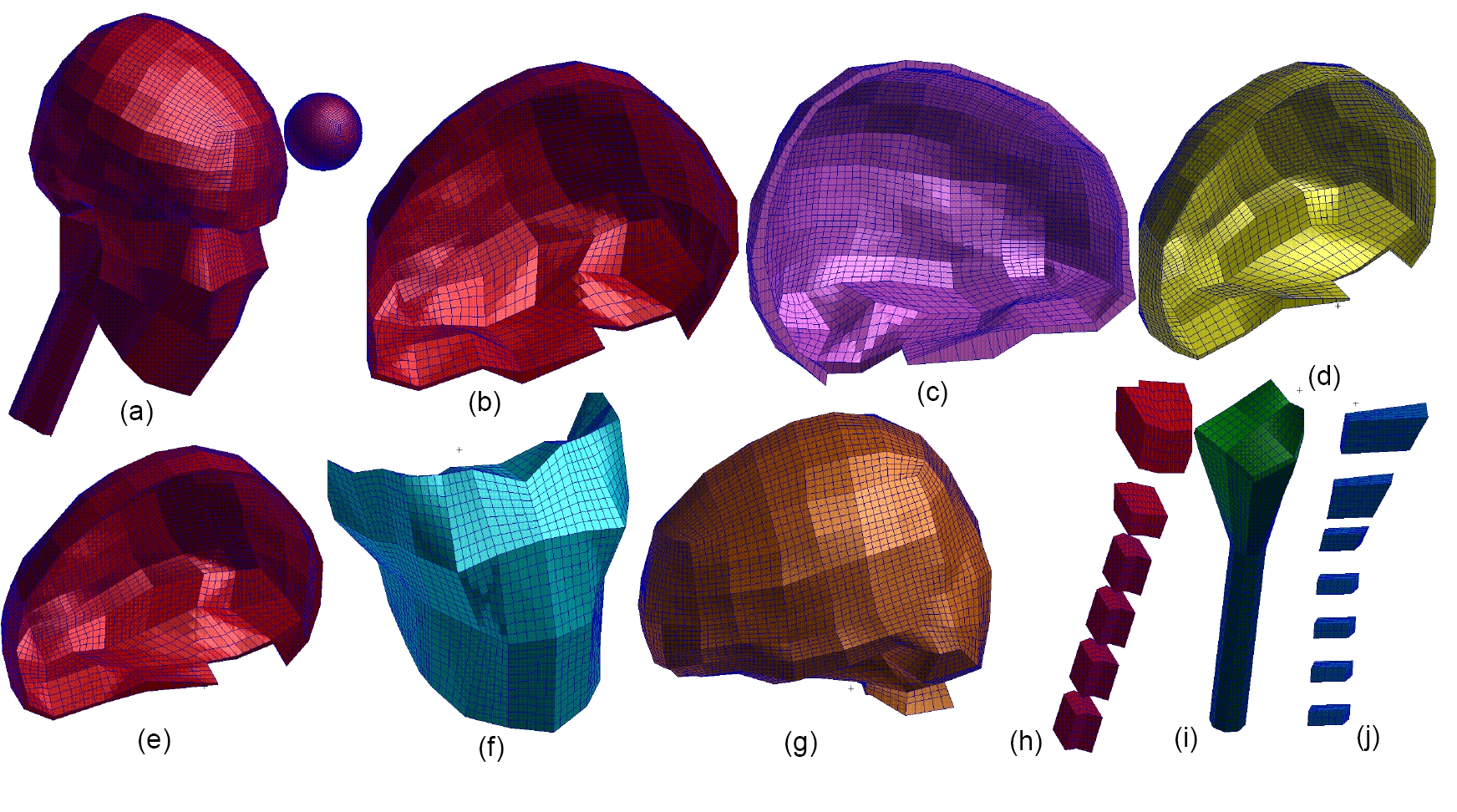

fig1_imechanica.JPG | 1.25 MB |

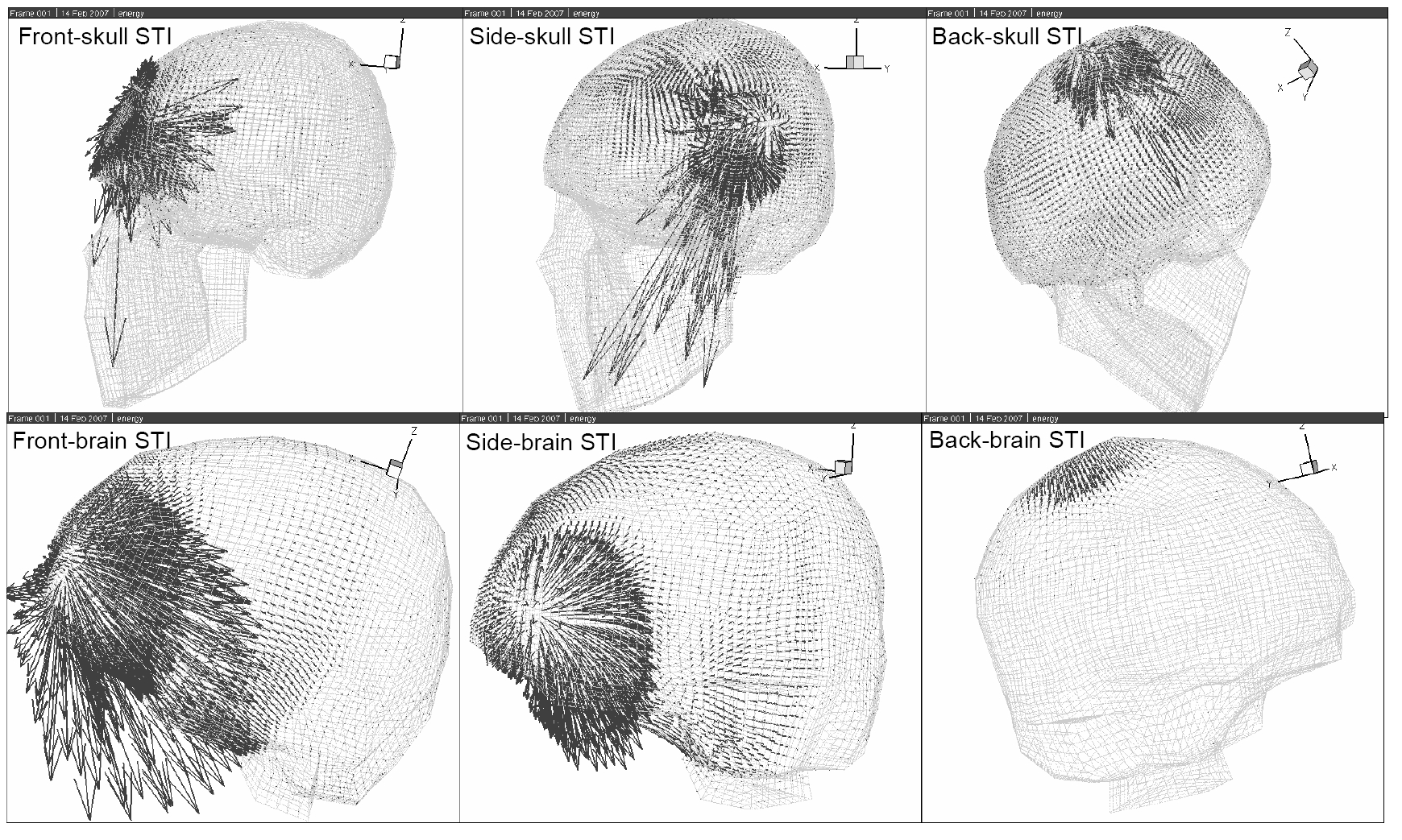

fig10_imechanica.JPG | 1.27 MB |
- Fang Wang's blog
- Log in or register to post comments
- 15979 reads
Comments
Child's age
Dear Fang,
I found your simulation results are useful to give some insight on mechanism of skull's damage. I'm really interested in this subject as I have a 10-month son, and he sometimes falls off to the floor at his back of the head (the skull response due to the floor could be different from golf-ball impact).
What's the age of the child that you predefined in your FE model?
Do you have the results on the relationship between child's age and the severity of damage?
I believe skull of a child may develop time to time until 1.5 years old (this age is also questionable) which implies the time-dependent mechanical property of the skull.
Please share your results with me. Thank you.
Child age
Dear Arief:
Thanks for your interest. The anatomy and mechanical material properties of the human head change as it develops. After suture fusion of the soft membranes, which takes place before a child reaches two, the anatomical features of the head of a child become similar to those of an adult. Although geometrically proportional to the head of a 25 year old adult, the head of the child is approximately 15% smaller (Klinich et al., 1996).The mechanical properties of the head tissues of children change with age. It is hard to define a specific age group with specific mechanical properties because of paucity of experimental data. In my study, the intended target is an average child aged two years and above.
As for the impact on the floor, if the floor is harder, the danger is supposed to increase. It could be dangerous for a child aged two year below falls from a half meter high place if the head touches the hard floor first.
Impact of elastic ball with rigid or flexible flat target
Dear Fang,
I was trying to perform a drop test of a
flexible (elastic) solid sphere on a rigid flat target with ANSYS LS
dyna. Do you know what is the best element and the corresponding
options of that elemet, how to mesh the ball to get best results,
which is better ANSYS or ANSYS LS Dyna? iam a student and have been
trying to solve this problem, but my results sometimes very far from
HERTZ dynamic equation. Please guide me. Also when Irefine the meshes
more, my computer ask for more memry using -m command which i do not
understand. Please help me!!!!!
my email a.abeed@tu-bs.de
Copy of paper
Hi,
where can one get a copy of your paper?
thx
Ken
ktannar@yahoo.com
