ABAQUS Element Connectivity

Hi,

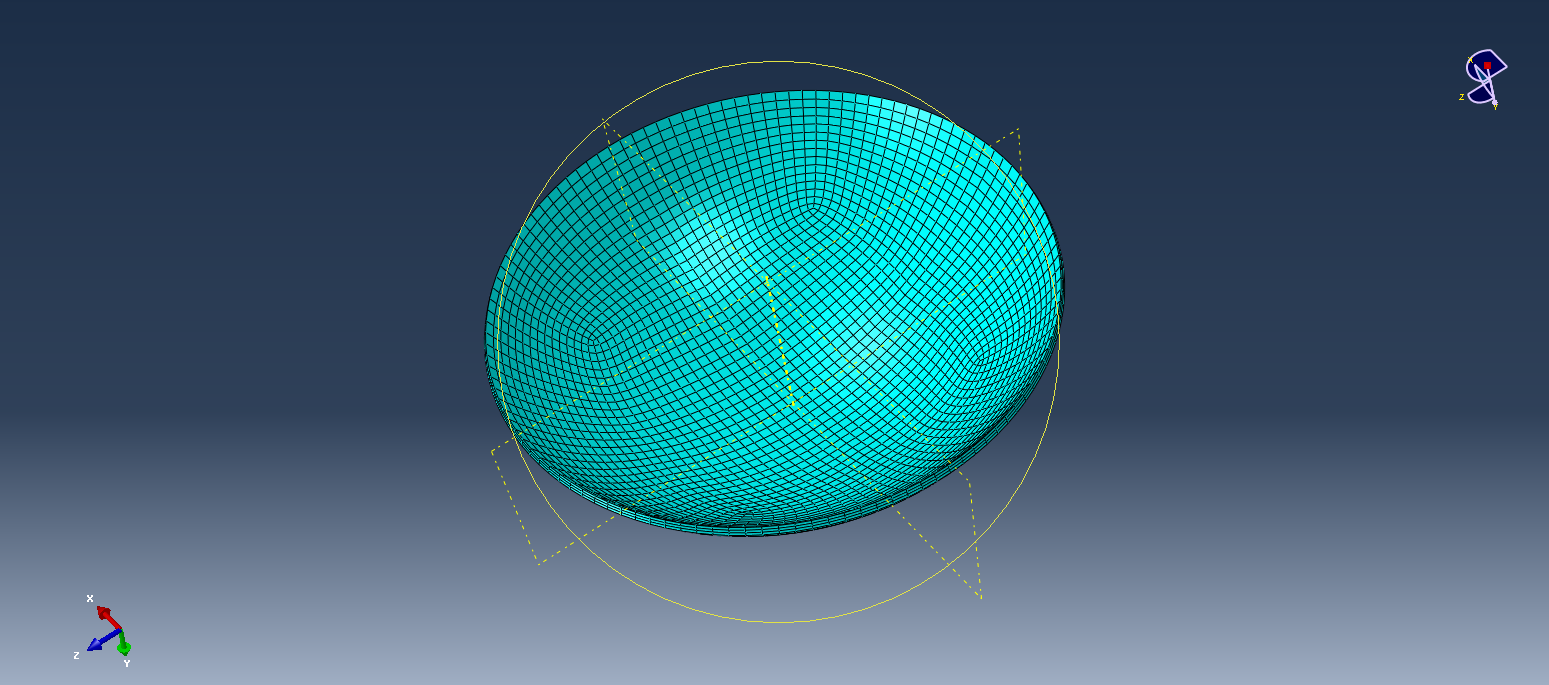

I am trying to mesh the hollow sphere attachged using structured BRICK-8 elements. It turns out in order to have a structured mesh, I have to have 2 partitions such that four quadrants be generated.

What I only need from ABAQUS is the element connectivity. I do not need to solve any problem.

The issue I am facing is that each quadrant connectivity nodes' order is different. e.g. for a simple one element case with coordinates (-1,-1,-1)-(1,-1,-1)-..-(-1,1,1) you expect you number the elements in the datum plane with negative z-axis starting 1 to 4. Then you sweep the positive z-axis plane and and number them 5-8. Now if you have any other elements in the domain, the starting node in the connectivity should always be consistent by this order 1-2-3-4-5-6-7-8 however for two quadrants I have  1-2-3-4-5-6-7-8 and for the other two I have 3-4-1-2-7-8-5-6. I think this problem is due to the partitions and is inevitable.

Please let me know if you know the answer.



Cheers,

Reza

AttachmentSize
Image icon mesh.png231.75 KB

Comments

Frank Richter's picture

Hello

the code below will generate a file listing (in my example)

({'connectivity': (4980, 4981, 4982, 4983), 'instanceName': None, 'label': 1, 'type': C3D4}),4980

for all elements.
The 4 numbers are the nodes forming the element identified after 'label'
I do not recall what the last number stands for, it presumably repeats the first node number

Important: node numbers are shifted by one ! A node number 0 exists.
Check the output for a few elements by picking
ABAQUS/CAE : Tools-->Query-->Element

Good luck

Frank

----------------------------------------------------------------

import part

file = open('C:/Simulations/Shallow Notch/SN08/SN08-elements.txt','w+') # path and filename you want to generate

elemArr = mdb.models['Model-1'].parts['UFTE_SN_ohne_Gewinde'].elements # pick the part you want to analyse
len(elemArr)
# print elemArr
print len(elemArr)
#a = mdb.models['Model-1'].parts['Model-1']
#print a
#allNodes = a.nodes
#print allNodes
#rootAssembly
#elemente = a.elements[1]
# for e in elemArr:
  # print e.getNodes()
  # print e,' : ', e.connectivity

for e in elemArr:
    file.write('%s,%g\n' % (e, e.connectivity[0]))

file.close()
