plate

Submitted by mina rakhshi on

Hi friends,

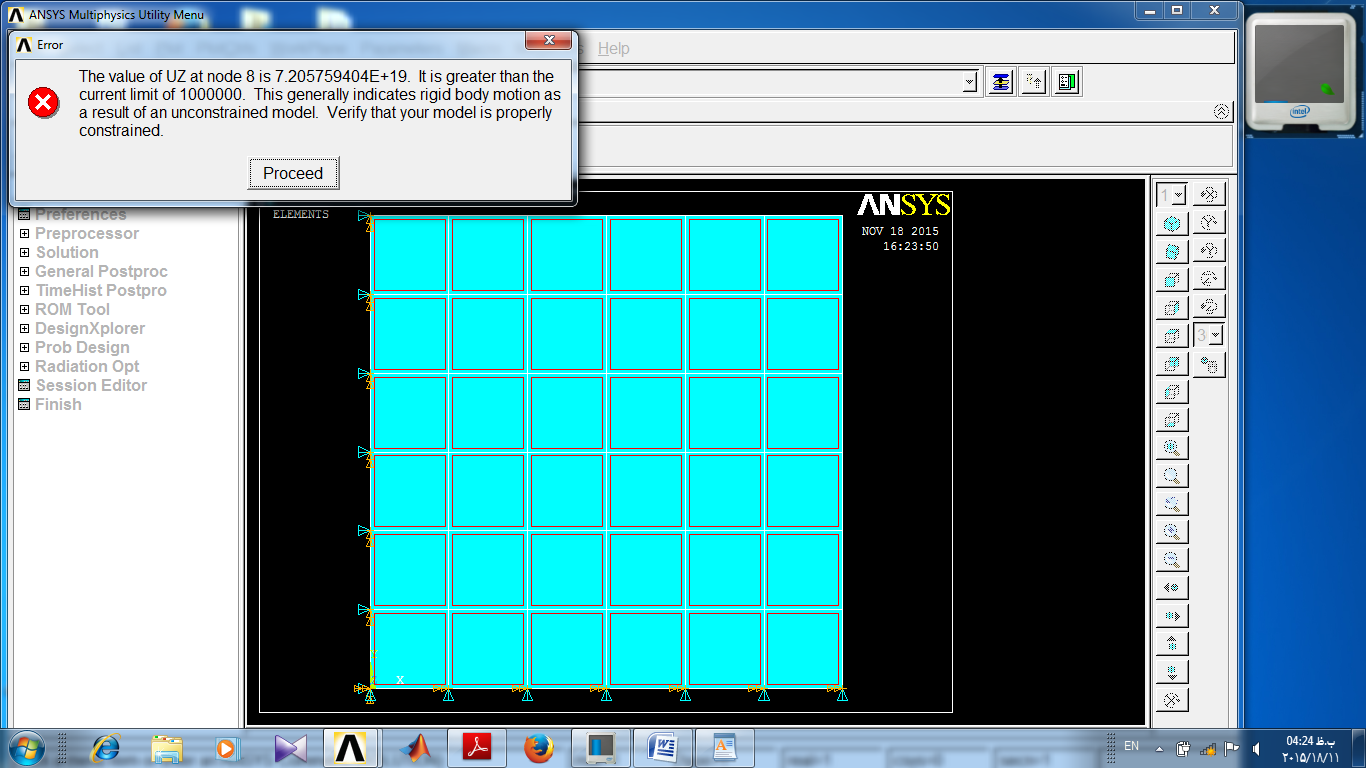

I want to model a plate with fix supports in APDL ANSYS but I receive an error that send it for you. dimensions of the plate are (0.2*0.2)m2 and carries pressure load 50(KN/m2).

please help me,

mina.





Attachment Size
Untitled.png 264.43 KB
afallah

Dear Mina,

Since the pressure is applied normal to the plate you must employ proper constraint in the z direction to prevent the plate motion in this direction. To this end you must set the uz=0 on the plate boundaries to prevente the rigid body motion.

Thu, 11/19/2015 - 11:24 Permalink
