shell with Multi thickness

Hi friends,

I have a shell with multi thickness in ansys But I don't know to how should describe multi thickness in section command in APDL Ansys.

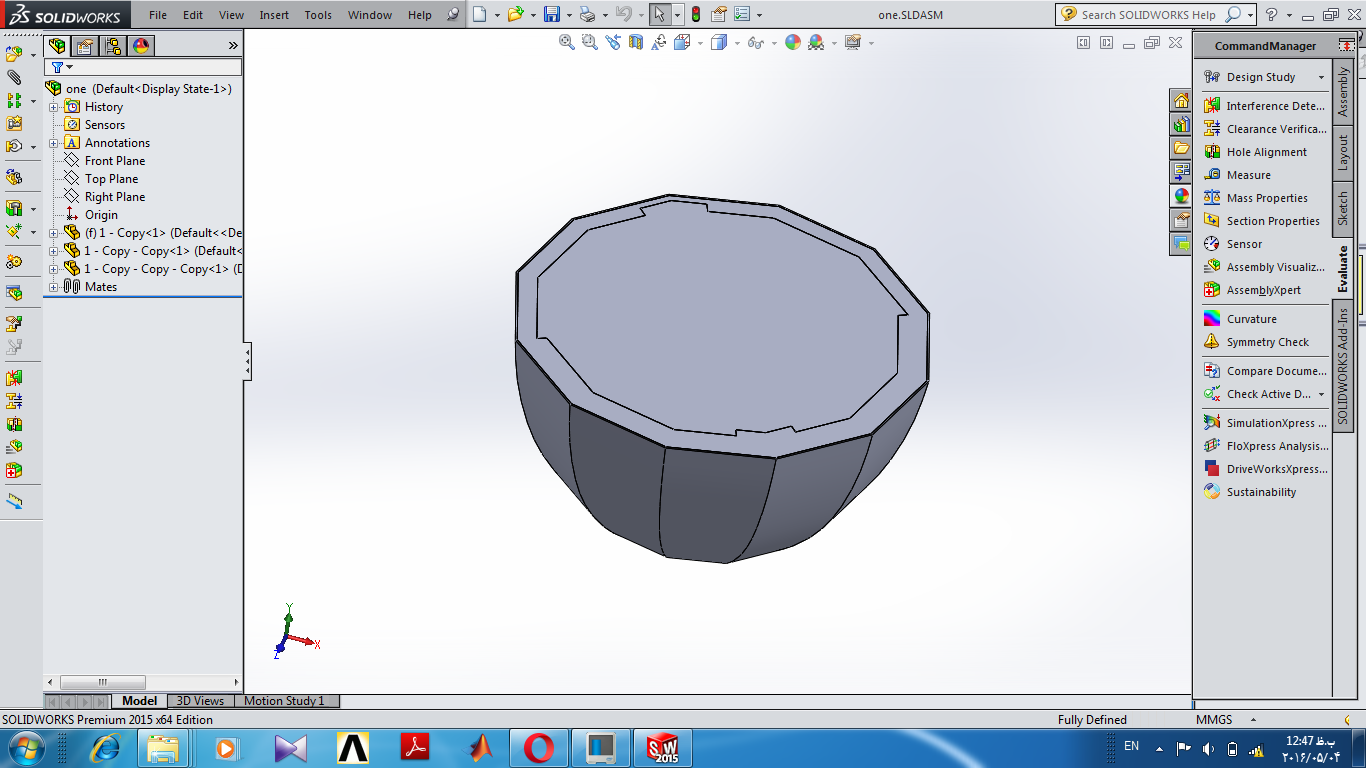

my model in solidworks is attached:

please help me.

mina.

AttachmentSize
Image icon Untitled.png241.3 KB
