Meshing Solid46 in ANSYS

Hi,

how do I Determine Z axis ( blue axis ) of the element coordinate ( with solid46 ) in  outward Direction .

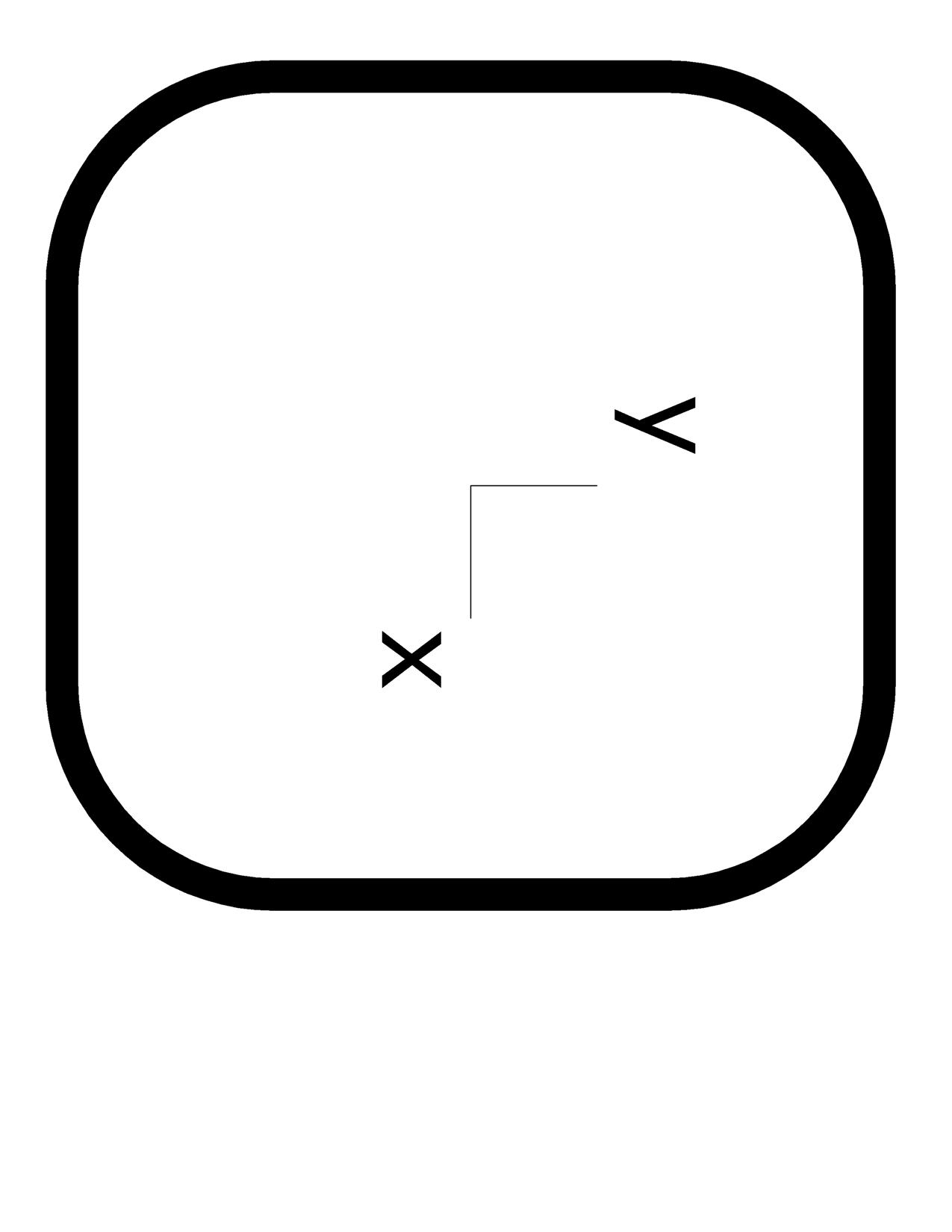

in Attached file put the cross section of the Model .

 Regards

AttachmentSize
Image icon Note.jpg57.05 KB
kanyfantis's picture

Hello,

Your question is not that clear. If i got it correctly you need to know how to visualize the z (blue axis) on the elements you have created?
