How to model the beam nonlinear vibration with magnet in ANSYS?

Submitted by Tang Lihua on Wed, 05/12/2010 - 07:58

Hi, friends

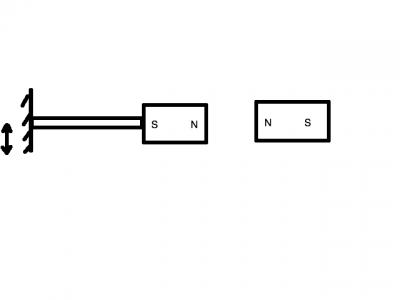

I want to simulate the nonlinear vibration of a cantilever beam under magnetic force. Is it possible to implement in ANSYS? Any guy has such experience?

Attachment	Size
figure.jpg	5.6 KB
