Continous orthotropic fiber direction in ansys

Submitted by saeed herasati on

Dear Friends,

 I am going to simulate a wavy orthotropic fiber in an isotropic media with  ansys workbench. The fiber is solid and the material direction of fiber needs to be changed continously with the fiber direction. I attached the model. I will appreciate if any body can give me an idea?



 Kind Regards,

Saeed

Attachment Size

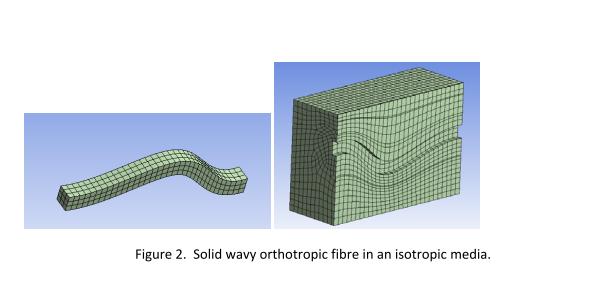

orthotropic fiber.JPG 18.24 KB
