Bridging the length scales through nonlocal hierarchical multiscale modeling scheme

rrahman's picture



In the current work the nonlocal multiscale bottom-up peridynamic framework is modified (i.e. extended PFHMM) in order to upscale the nonlocally interacting models at different length scales. The generalized scheme was implemented to a complex heterogeneous polymer: ultra high molecular weight polyethylene (UHMWPE). Using extended PFHMM, the atomistic model of UHMWPE was linked with the coarser peridynamic (PD) representative unitcells. Different phases (e.g. highly oriented unidirectional, amorphous or semicrystalline) of UHMWPE were blended during upscaling of polyethylene (PE) microfibrils. In literature, a thorough theoretical investigation on the deformation mechanism of highly oriented UHMWPE microfibrils is not available. So the current work also rigorously discussed the role of different loading conditions (such as torsion, tension and compression), pre-existing damages and aspect ratios on the stiffness as well as the strength of the UHMWPE microfibrils by using molecular dynamics (MD) simulation. Through MD simulation, the effect of complex-loading condition on the strength reduction was also investigated. Cauchy–Born rule was applied through extended PFHMM in order to link the deformation from atomistic scale models with the macroscale UHMWPE representative unitcells. Finally, a slightly modified AIREBO potential was used to show that the unidirectional UHMWPE is independent of strain rate. The results had reasonable agreement with the experimental results. The current work can be considered to be a building block for multiscale modeling of complex heterogeneous materials.

http://www.sciencedirect.com/science/article/pii/S0927025614003784

 DOI: 10.1016/j.commatsci.2014.05.052



AttachmentSize

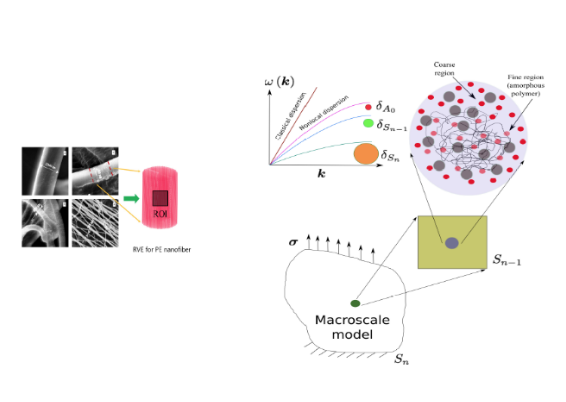

Image icon 2.png73.32 KB
