hello
im a new abaqus user and i want to model a viscoelastic material (asphalt) in abaqus . i have uniaxial creep test data for characterize viscoelastic behaviour . my question is how can i enter viscoelastic parameters in abaqus?is there any way to put creep test data directely in abaqus??
in abaqus for modelling viscoelastic material in time domain there are three ways:
1)combined test data
2)shear test data
3)volumetric test data
i have unaxial creep test data so what shoud i do?how can i obtain long-tern normalized shear compliance and elastic modulus for elastic modelling?

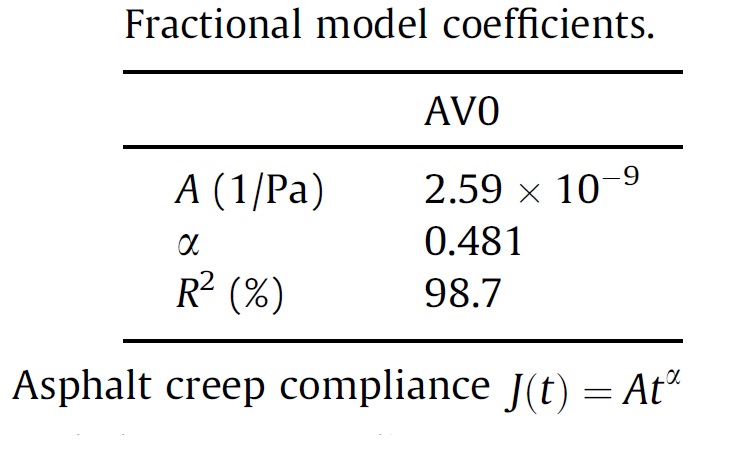

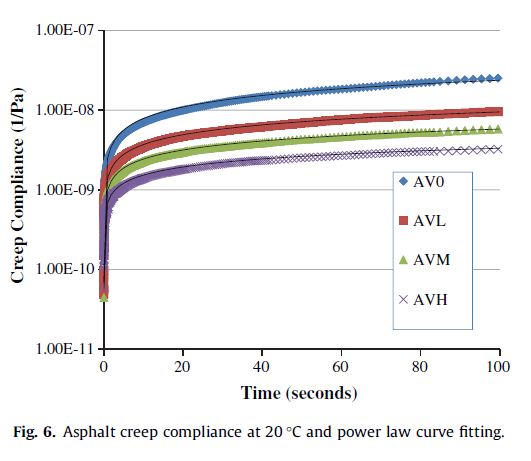

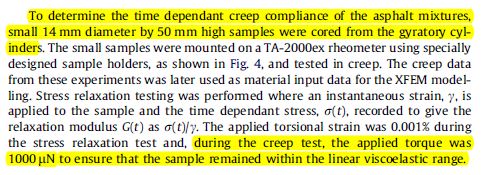

i attached my test data .
thank you
best regards
